PAN

Plaster 12

INC1502

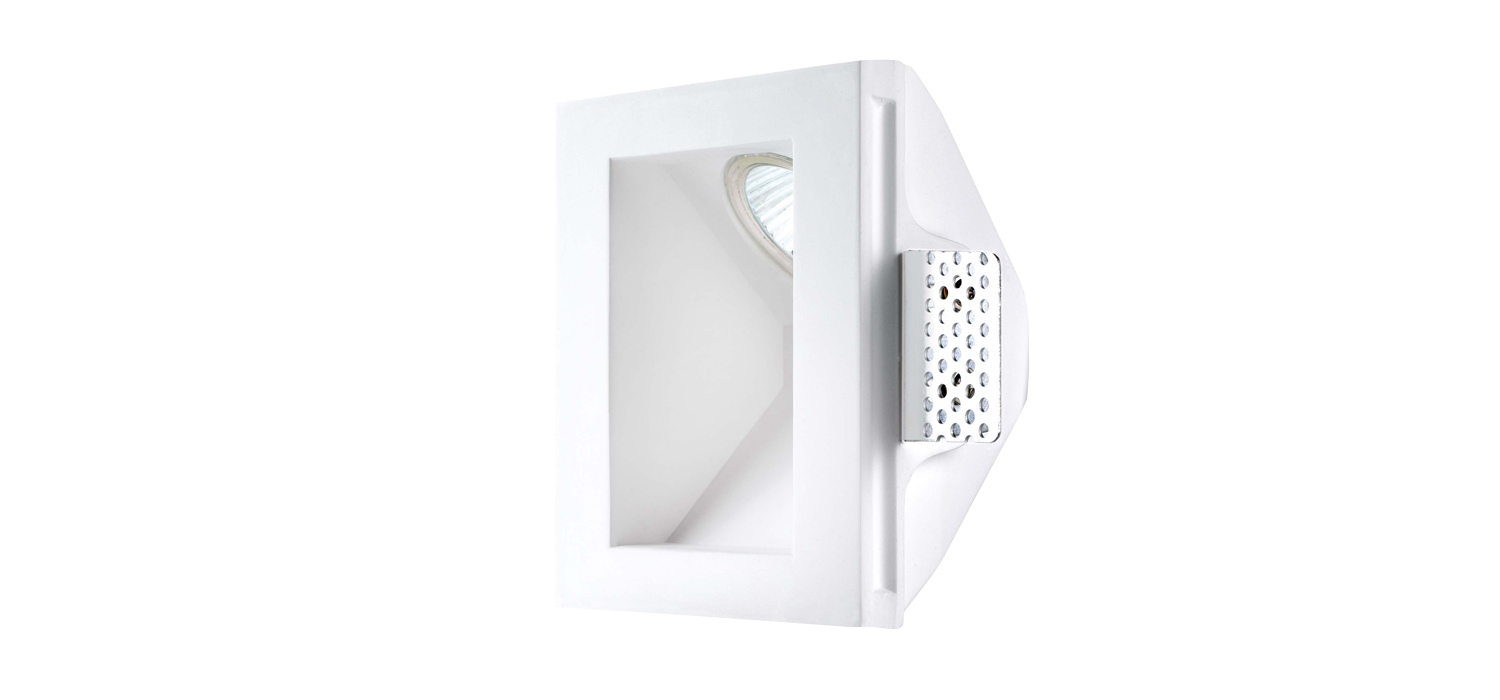

Recessed wall product with asymmetric emission for grazing floor lighting. Plaster body with back-set lampholder. The products is complete with GU10 lamp holder. Bulb is not included.

PRODUCTS CHARACTERISTICS

Installation type:

trimless recessed

material:

Chalk

finish:

Smoothed

color:

white

power:

max. 35 W

ELECTRICAL CHARACTERISTICS

feeding:

220÷240 V

driver:

On÷Off

insulation class:

Class II

MECHANICAL CHARACTERISTICS

Product IP rate:

IP20

HOLE RECESS DIMENSIONS

a x b hole recess:

123 x 123 mm.

LED SOURCE DETAILS

led source type:

LED / HAGS

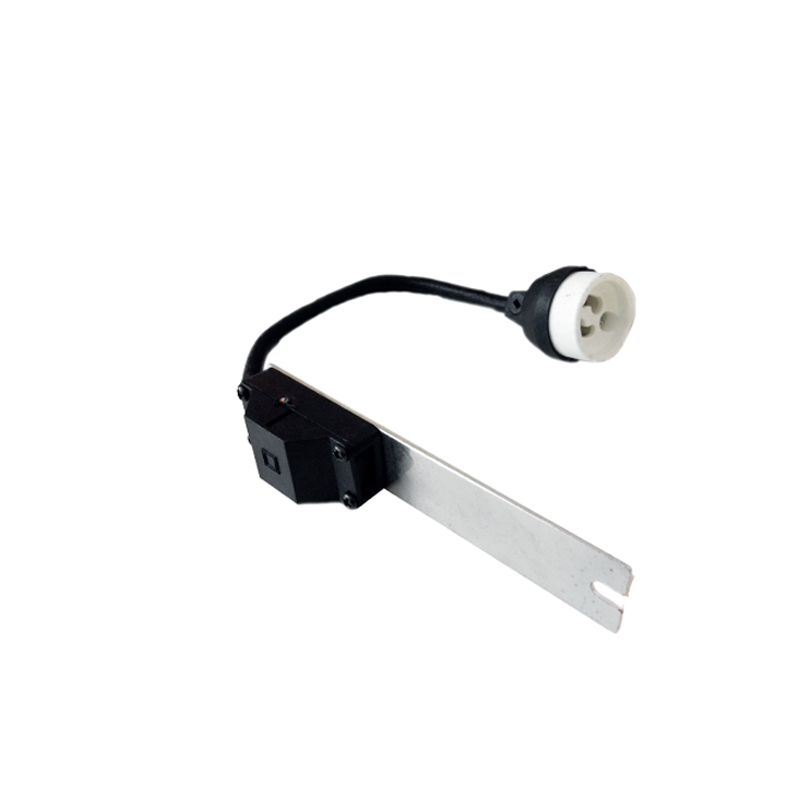

socket:

GU10

DRIVER CHARACTERISTICS

LIGHTING DETAILS

Emission:

rotosimmetrica

PACKING DETAILS

WARRANTY
