PAN

Plaster 9

INC10020

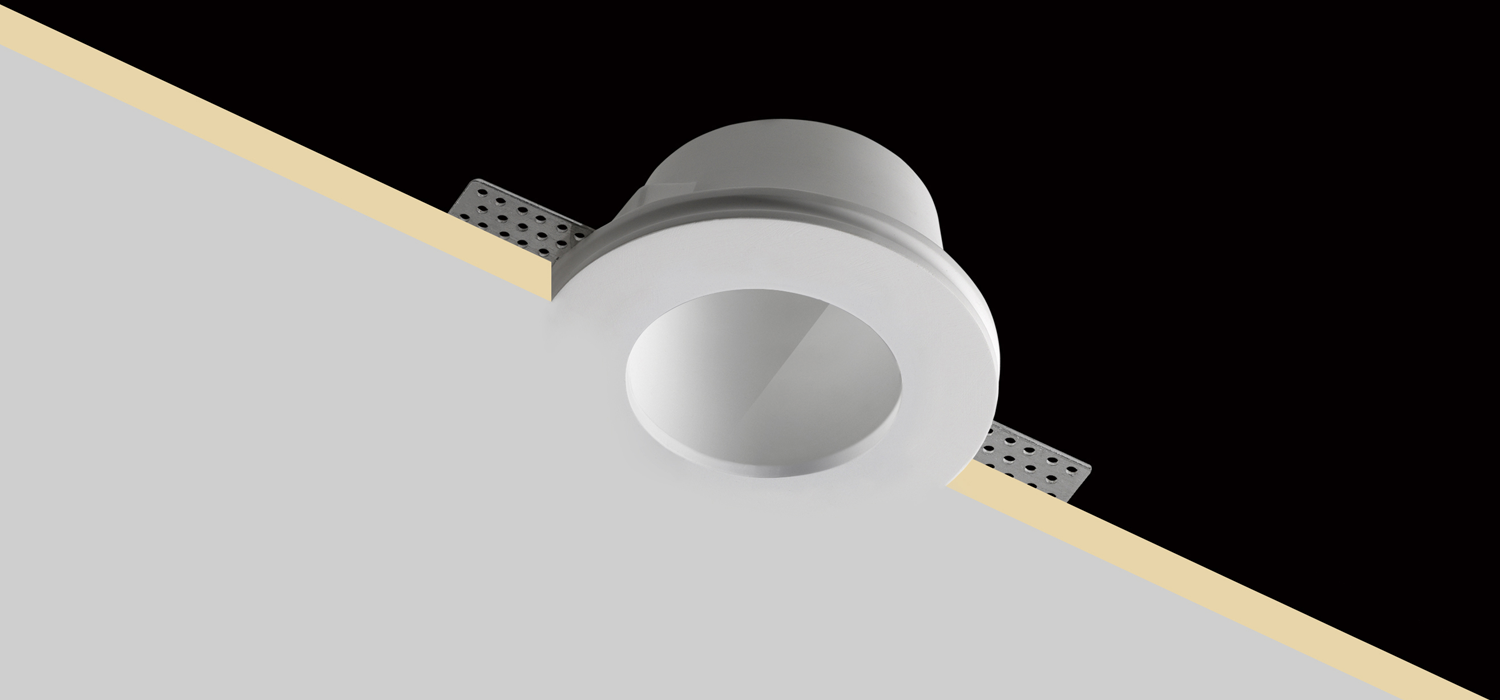

Plaster recessed downlight with GU10 lampholder set back. Diffussing glass screen for direct glare control. Product is complete with GU10 lamp holder for 220 / 230V LED bulb. Ideal for functional and easy installations. Bulb is not included with the product.

PRODUCTS CHARACTERISTICS

Installation type:

trimless recessed

material:

Chalk

finish:

Smoothed

color:

white

power:

max. 35 W

dimensions:

ø 120 mm.

ELECTRICAL CHARACTERISTICS

feeding:

220÷240 V

driver:

On÷Off

insulation class:

Class II

MECHANICAL CHARACTERISTICS

Product IP rate:

IP20

HOLE RECESS DIMENSIONS

Hole recess diameter:

ø 123 mm.

LED SOURCE DETAILS

led source type:

LED / HAGS

socket:

GU10

DRIVER CHARACTERISTICS

LIGHTING DETAILS

Emission:

rotosimmetrica

PACKING DETAILS

WARRANTY

Press button "+" to select one or more files and download selection, or download each datasheet by clicking on the relative download button.

Documentation

Datasheet

Installation

Instruction manual
